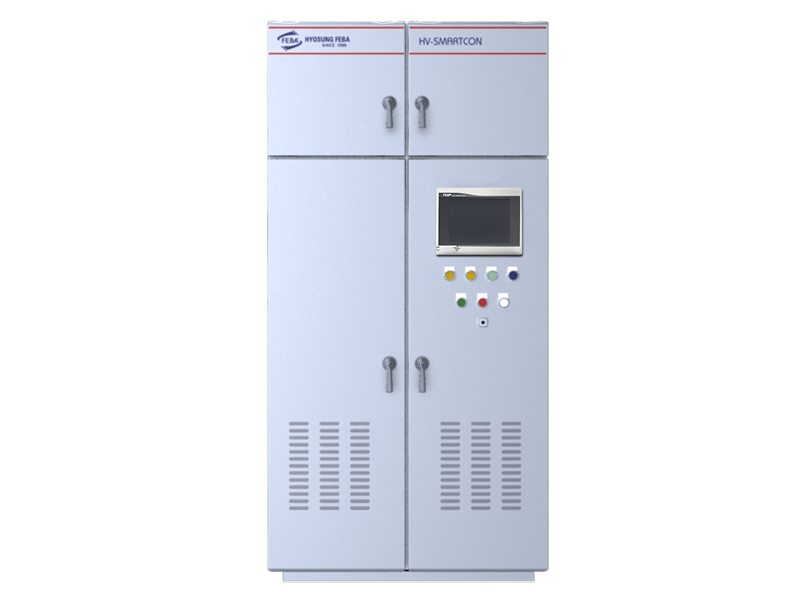

HV-SMARTCON
제품별부품 HV-SMARTCON
본문
- HVSMC-66-2800S-T
- HVSMC-66-2800S-S
- HVSMC-66-2800S-R
- HVSMC-66-2500S-T
- HVSMC-66-2500S-S
- HVSMC-66-2500S-R
- HV-SMARTCON POWER
- HV-SMARTCON Controller
- HVSMC-66-1800S-R
- HVSMC-66-1800S-S
- HVSMC-66-1800S-T
- HVSMC-66-3800S-R
- MAIN CONTROL (CPU)
- HV_SMPS_1.0E
- GATE DRIVE HV_DRV_1.3A
- Phase check board
- Touchpanel-main control(cpu)
- Monitoring System
- SMPS HF75M-EHEE
상세정보

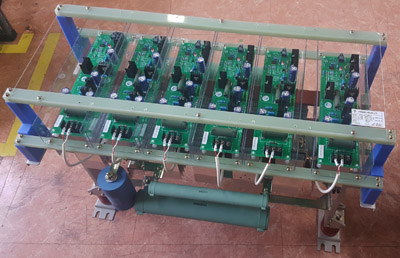

○HVSMC-66-2800S-T / HVSMC-66-2800S-S / HVSMC-66-2800S-R
| MAKER | (주)효성FEBA |
| MODEL | HVSMC-66-2800S-T / HVSMC-66-2800S-S / HVSMC-66-2800S-R |
| TYPE | DIGITAL HIGH VOLTAGE |
| CONTROL | GATE TRIGGER AND VOLTAGE SUPPLY |
| APPLICATION RANGE (kW) | 2800 kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |
○HVSMC-66-2500S-T / HVSMC-66-2500S-S / HVSMC-66-2500S-R
| MAKER | (주)효성FEBA |
| MODEL | HVSMC-66-2500S-T / HVSMC-66-2500-S-S / HVSMC-66-2500S-R |
| TYPE | DIGITAL HIGH VOLTAGE |
| CONTROL | GATE TRIGGER AND VOLTAGE SUPPLY |
| APPLICATION RANGE (kW) | 2500kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENY | 60Hz |

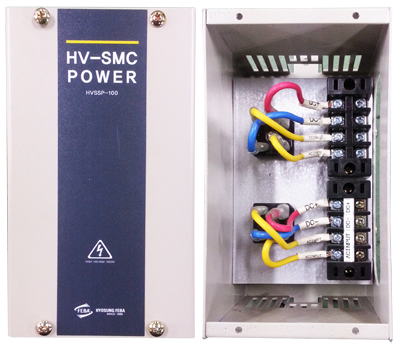

○HV-SMARTCON POWER
| MAKER | (주)효성FEBA |
| MODEL | HVSSP-100 |
| TYPE | DC CONTROL POWER |
| USE | HV-SMC POWER |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| 입력전압 | AC39V~42V |
| 출력 | DC50V 30A |

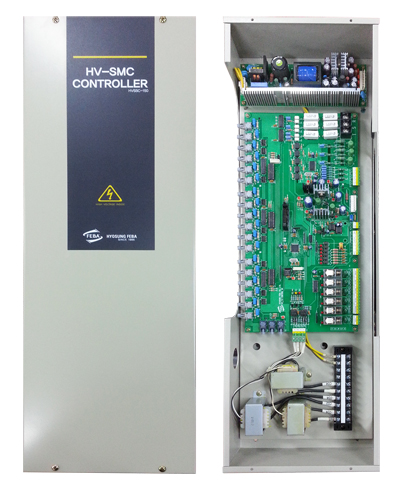

○HV-SMARTCON Controller
| MAKER | (주)효성FEBA |
| MODEL | HVSSC-150 |
| TYPE | TOUCH용 COontrol BOX |
| USE | HV-SMC Controller |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |

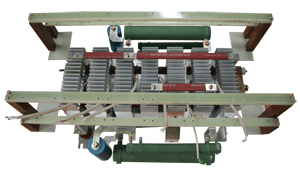

○HVSMC-66-1800S-R / HVSMC-66-1800S-S / HVSMC-66-1800S-T
| MAKER | (주)효성FEBA |
| MODEL | HVSMC-66-1800S-R / HVSMC-66-1800S-S / HVSMC-66-1800S-T |
| VOLTAGE | AC 6600V |
| USE | 1'S STACK |
| APPLICATION RANGE (kW) | 1800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |

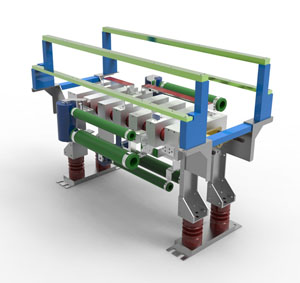

○HVSMC-66-3800S-R
| MAKER | (주)효성FEBA |
| MODEL | HVSMC-66-3800S-R |
| TYPE | DIGITAL HIGH VOLTAGE SUPPLY |
| CONTROL | GATE TRIGGER AND VOLTAGE SUPPLY |
| APPLICATION RANGE (kW) | 3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |

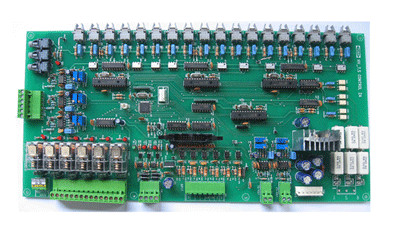

○MAIN CONTROL (CPU)
| MAKER | (주)효성FEBA |
| MODEL | HV-control 2B |
| TYPE | High Voltage DIGITAL SOFT STARTER |
| USE | MAIN (CPU) |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |

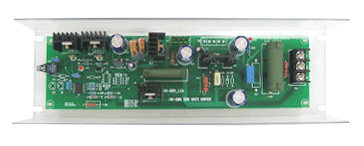

○HV-SMPS-1.0E
| MAKER | (주)효성FEBA |
| MODEL | HV-SMPS-1.0E |
| TYPE | High Voltage DIGITAL SOFT STARTER |
| USE | SMPS |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |
| 입력 전압 | DC 50V |
| 출력 | DC 18V 1A |

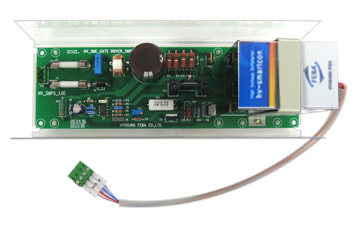

○GATE DRIVE HV_DRV_1.3A
| MAKER | (주)효성FEBA |
| MODEL | HV-SMPS-1.3E |
| TYPE | High Voltage DIGITAL SOFT STARTER |
| USE | SMPS |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| FREQUENCY | 60Hz |
| 입력전압 | DC50V |
| 출력 | DC18V 1A |

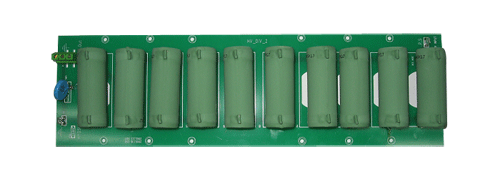

○Phase check board
| MAKER | (주)효성FEBA |
| MODEL | HV-DIV-2 |
| TYPE | High Voltage DIGITAL SOFT STARTER |
| USE | Phase check board |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |

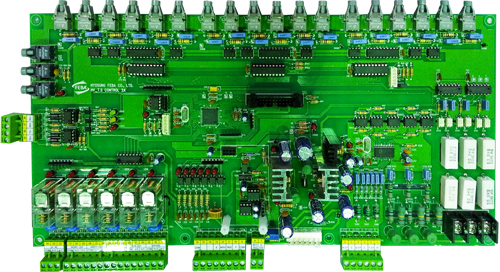

○Touchpanel-main control (CPU)
| MAKER | (주)효성FEBA |
| MODEL | HV-T.S Control 2A |
| TYPE | TOUCHPANEL용 HV SOFT STARTER |
| USE | TOUCH PANEL용 MAIN (CPU) |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
○Monitoring System
| MAKER | (주)효성FEBA |
| MODEL | XTOP10TS-SA FEBA-HVS-MS |
| TYPE | Monitoring System |
| USE | TOUCH OPERATION MMI CONTROL |
| APPLICATION RANGE (kW) | 45A~200A |
| SUPPLY VOLTAGE | AC85~264V [DC24V (20~28V) |
| AMBIENT TEMPERATURE | -20~70℃ |
| DISPLAY SIZE | 10.4' |
| 해상도 | 800 X 600 |

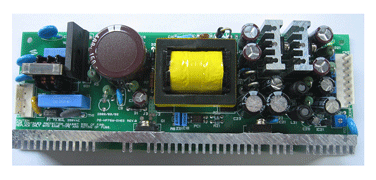

○SMPS HF75M-EHEE
| MAKER | (주)효성FEBA |
| MODEL | HF75M-EHEE |
| TYPE | TOUCH PANEL용 HV SOFT STARTER |
| USE | MAIN PCB 전원공급 SMPS |
| APPLICATION RANGE (kW) | 300kW~3800kW |
| AMBIENT TEMPERATURE | -20~70℃ |
| 입력 전압 | AC85V~264V |
| 출력 | CH1: DC15V 3A / CH2: DC24V 0.3A / CH3: DC15V 0.5A / CH4: DC-15V 0.5A |
| 용량 | 45W |
